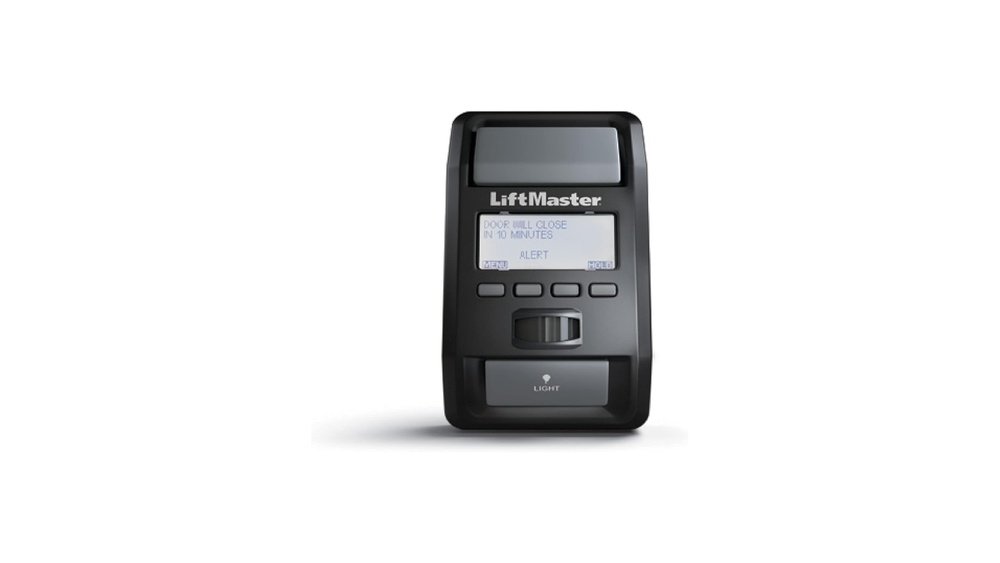

Understanding The Liftmaster Garage Door Opener Control Panel
The control panel, often referred to as the wall control, wall station, or multi-function control panel, is typically mounted inside your garage near the entry door. Its primary role is to provide a convenient and secure way to operate your garage door opener.
While some older systems might only have a simple button, most modern LiftMaster panels offer a range of features designed to enhance user experience and security.
The fundamental principle behind any garage door opener control panel is signal reception and transmission. When you press a button on the panel or a remote, a signal is sent. The control panel receives this signal and interprets it, then sends a corresponding command to the garage door opener motor unit, which is usually mounted on the ceiling. This command instructs the motor to either open, close, or stop the door.
The Anatomy Of A Liftmaster Control Panel
LiftMaster offers a variety of control panels, but they generally share common components that enable their functionality. Understanding these parts is key to diagnosing issues and appreciating the panel’s capabilities.
- Learn Button: This is arguably the most critical button on the panel for programming. It’s typically a colored button (often red, orange, or purple, depending on the model) located near the antenna or on the back of the unit. Pressing and releasing this button puts the opener into a learning mode, allowing it to accept signals from new remote controls or keypads. Holding it down for an extended period can sometimes clear all previously programmed remotes.
- Indicator Lights: Most panels feature one or more LED lights. These lights serve as visual indicators for various states:
- Power Indicator: A steady light usually signifies that the control panel and opener are receiving power.
- Status Lights: Blinking lights can indicate specific conditions, such as a safety sensor obstruction, a programming mode, or an error state. The pattern and color of the blinking lights are often detailed in the owner’s manual and are crucial for diagnostic purposes.
- Connectivity Lights: Some advanced panels may have lights indicating Wi-Fi or Bluetooth connectivity status.
- Lock/Vacation Mode Button: This button is a security feature designed to prevent accidental or unauthorized operation of the garage door. When activated, it typically disables the remote control signals, allowing only the wall control panel to operate the door. This is particularly useful when you are away on vacation or want to ensure the garage door remains closed and secure.
- Door Control Button(s): This is the primary button used to open, close, or stop the garage door. On simpler panels, it might be a single button. On more advanced multi-function panels, there might be separate buttons for open, close, and stop, or a single button that cycles through these functions.
- Integrated Keypad (Optional): Some control panels have a built-in keypad, allowing you to open and close the garage door using a personal identification number (PIN). This eliminates the need for a remote control when you are inside the garage or have your keys with you.
- Motion Detector (Optional): Higher-end models may include a motion detector that can activate garage lights when movement is detected, enhancing safety and convenience.
How The Panel Communicates With The Opener
The communication pathway between the control panel and the garage door opener motor unit is generally straightforward, though the specifics can vary by model.
Wired Connections
For panels mounted directly on the wall, a low-voltage wire typically runs from the control panel to the motor unit. This wire carries the electrical signals that activate the opener’s functions. The wire is usually a two-conductor thermostat wire, readily available at hardware stores. The integrity of this connection is paramount. If the wire is damaged, cut, or improperly connected, the control panel will not function.
When you press a button on the wired control panel, it completes a circuit. The opener motor unit detects this completed circuit and interprets the specific signal to perform the requested action (open, close, stop). For instance, pressing the “open” button might send a specific voltage pulse through the wire, while the “close” button sends a different pulse.
Wireless Communication (for Keypads)
If you have a separate wireless keypad that communicates with the control panel or directly with the motor unit, the communication relies on radio frequency (RF) signals.
- Signal Generation: When you enter your PIN on the keypad and press the enter button, the keypad generates a unique RF signal.
- Signal Transmission: This signal is transmitted wirelessly.
- Signal Reception: The garage door opener motor unit (or sometimes the control panel itself, which then relays the signal) is equipped with an RF receiver tuned to the specific frequency and code transmitted by the keypad.
- Signal Decoding: Upon receiving the signal, the opener decodes it. If the code matches a programmed code, the opener executes the command.
The range of wireless communication can be affected by factors like interference from other wireless devices, the strength of the keypad’s battery, and the distance between the keypad and the receiver.
Common Liftmaster Control Panel Issues And Troubleshooting
Garage door opener control panels, like any electronic device, can sometimes encounter problems. Fortunately, many common issues are relatively easy to diagnose and fix without needing professional assistance.
Panel Is Unresponsive (no Lights, No Action)
This is one of the most common and frustrating problems. If your control panel is completely dead, meaning no lights are on and pressing buttons does nothing, the issue is likely related to power supply.
- Check the Power Outlet: Ensure the garage door opener motor unit is plugged into a working electrical outlet. Test the outlet with another appliance, like a lamp or vacuum cleaner, to confirm it has power.
- Inspect the Circuit Breaker: Check your home’s electrical panel to see if the circuit breaker for the garage has tripped. If it has, reset it. If it trips again immediately, there might be an electrical fault requiring professional attention.
- Examine the Wiring: For wired control panels, carefully inspect the low-voltage wire running from the panel to the motor unit. Look for any signs of damage, such as cuts, nicks, or corrosion. Ensure the connections at both the panel and the motor unit are secure. Loose connections are a frequent culprit.
- Reset the Opener: Sometimes, a simple reset can resolve glitches. Unplug the garage door opener motor unit from the power outlet for about 30 seconds, then plug it back in. This will reset the opener’s internal electronics.
Buttons On The Panel Don’t Work, But Remotes Do
If your remote controls are functioning correctly, but the buttons on the wall-mounted control panel are not responding, the problem is likely isolated to the control panel itself or its wiring.
- Test the Lock/Vacation Mode: First, ensure that the Lock or Vacation mode is not accidentally activated. This feature disables remotes but should still allow the wall panel to function. However, some models might behave differently, so it’s worth checking.
- Inspect Panel Wiring: The low-voltage wire connecting the panel to the motor unit is the most probable cause.
- Loose Connections: At the motor unit, the wires from the wall control connect to specific terminals. Ensure these wires are firmly attached. Sometimes, the insulation might need to be stripped back slightly to ensure good contact.
- Damaged Wire: If the wire appears damaged anywhere along its run, it may need to be replaced. You can test sections of the wire with a multimeter if you’re comfortable with basic electrical testing.
- Corroded Terminals: Check the terminals on the back of the control panel and the motor unit for any signs of corrosion. Clean them gently with a pencil eraser or fine-grit sandpaper if necessary.
- Replace the Control Panel: If you’ve confirmed the wiring is intact and connections are secure, and the lock mode isn’t active, the control panel itself might be faulty and require replacement.
Control Panel Lights Are Blinking
Blinking lights on a LiftMaster control panel are usually diagnostic indicators. The specific pattern of blinking (e. g. , number of flashes, color) often corresponds to a particular error code.
- Consult Your Manual: The most accurate way to interpret blinking lights is to refer to your specific LiftMaster model’s owner’s manual. It will provide a detailed list of error codes and their meanings. You can usually find these manuals on the LiftMaster website.
- Common Blinking Light Causes:
- Safety Sensor Obstruction: If the safety sensors at the bottom of the garage door tracks are blocked, dirty, or misaligned, the opener will often refuse to close the door and may trigger blinking lights on the control panel. Check the sensors for obstructions and ensure the indicator lights on the sensors themselves are steady.
- Travel Limit Issues: The opener needs to know how far to open and close the door. If the travel limits become unset or corrupted, the opener may not function correctly, leading to blinking lights. These limits are usually reset via the motor unit.
- Programming Mode: If the learn button was accidentally pressed and held, the opener might be in a programming mode, indicated by blinking lights. Usually, pressing the learn button briefly or waiting a few minutes will clear this.
- Internal Error: In some cases, blinking lights can indicate an internal error within the motor unit itself.
Remote Controls Not Working With The Panel
If your remote controls suddenly stop working, but the wall control panel still functions, the issue is likely with the remote programming or the opener’s receiver.
- Re-Sync Remotes: The most common solution is to re-program the remotes.
- Locate the Learn button on the motor unit (or sometimes on the control panel itself, depending on the model).
- Press and release the Learn button. An indicator light should illuminate.
- Within 30 seconds, press and hold the button on your remote control that you want to use to operate the door.
- Release the button when the opener’s lights flash or the opener clicks. This confirms the remote has been programmed.
- Test the remote. You may need to repeat this process for each remote.
- Clear All Remotes: If multiple remotes stop working, you might need to clear all previously programmed remotes and start fresh. To do this, press and hold the Learn button on the motor unit for about 6-10 seconds until the indicator light goes out. Then, re-program each remote individually.
- Antenna Issues: Ensure the antenna wire hanging from the motor unit is not cut, damaged, or obstructed. Sometimes, simply repositioning the antenna can improve reception.
- Remote Battery: Check and replace the battery in the remote control. A weak battery can prevent the remote from transmitting a strong enough signal.
Control Panel Buttons Need To Be Held Down To Operate
This behavior, where you have to continuously press and hold a button for the door to move, is usually an indication that the safety reversing sensors are not functioning correctly.
- Check Safety Sensors: The opener interprets this as a safety feature, if the sensors detect an obstruction, holding the button is required to override and close the door.
- Obstructions: Ensure nothing is blocking the path of the safety sensors (usually located a few inches off the ground on either side of the garage door tracks).
- Alignment: The sensors must be perfectly aligned. If one sensor’s indicator light is off or blinking, they are likely misaligned. Adjust them until both lights are steady.
- Cleanliness: Dust or dirt on the sensor lenses can interfere with the beam. Wipe them clean with a soft cloth.
- Wiring: Check the wiring to the safety sensors for damage or loose connections.
Advanced Features And Their Functionality
Modern LiftMaster control panels go beyond simple open/close functionality, offering features that enhance security, convenience, and energy efficiency.
Multi-function Control Panels
These panels often replace the basic push-button with a more sophisticated interface. They might include:
- Illuminated Buttons: Easier to locate in a dimly lit garage.
- Diagnostic LEDs: Provide more detailed error information than simple blinking lights.
- Programmable Outputs: Some panels allow you to connect additional accessories, like external lights or gate openers, controlled via the panel or a remote.
- Motion-Activated Lighting Control: Integrated motion sensors can turn on garage lights automatically when you enter the garage, providing illumination and a deterrent against intruders.
Smart Control Panels And Myq® Technology
LiftMaster’s MyQ® technology is a significant advancement, allowing users to monitor and control their garage door opener remotely via a smartphone app. Smart control panels are the gateway to this functionality.
- Remote Monitoring: Check the status of your garage door (open or closed) from anywhere using your smartphone.
- Remote Operation: Open or close your garage door from afar, useful if you forgot to close it or need to grant access to someone.
- Alerts and Notifications: Receive real-time alerts on your phone when the garage door is opened or closed, or if it’s left open for an extended period.
- Integration with Smart Home Systems: MyQ® can often integrate with other smart home platforms like Amazon Key, Google Assistant, and Apple HomeKit, allowing for voice control and automation routines.
To use these features, the smart control panel needs to be connected to your home’s Wi-Fi network. The setup process typically involves downloading the MyQ® app and following on-screen instructions to pair the panel with your network and account.
Programming And Security Features
- Vacation/Lock Mode: As mentioned, this disables remote operation, enhancing security when you’re away.
- Personal Access System (PAS): Some systems use a Personal Access System (PAS) keypad, which requires a unique PIN to operate the garage door. This adds a layer of security, especially if multiple people need access without individual remotes.
- Rolling Code Technology: Most modern LiftMaster openers use Security+ 2.0® technology, which employs rolling codes. Each time you press the remote button, a new code is generated. This prevents potential thieves from capturing a single code and using it to open your garage. The control panel and the motor unit must be synchronized to recognize these rolling codes.
Credit: pinnaclepeo.com
Maintenance And Longevity Of Your Control Panel
Proper maintenance can significantly extend the lifespan and ensure the reliable performance of your LiftMaster control panel and associated garage door opener system.
Regular Cleaning
- Dust and Debris: Dust, dirt, and cobwebs can accumulate on the control panel’s buttons and casing, potentially interfering with their operation or causing aesthetic issues.
- Cleaning Method: Use a soft, dry microfiber cloth to wipe down the panel regularly. For stubborn grime, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the electronic components. Ensure the panel is completely dry before use.
Checking Connections
- Wired Panels: Periodically (e.g., every 6-12 months), check the wire connections at both the control panel and the motor unit. Ensure they are secure and free from corrosion. Loose connections are a common cause of intermittent or complete failure.
- Wireless Keypads: For wireless keypads, check the battery life. Most keypads have an indicator light that signals a low battery, but it’s good practice to replace the battery annually or as recommended by the manufacturer.
Testing Safety Features
- Safety Reversing Sensors: Regularly test the safety reversing sensors. Place a solid object (like a 2×4 piece of wood) in the path of the closing door. The door should stop immediately upon contact and reverse direction. If it doesn’t, the sensors need adjustment or repair. This is a critical safety check.
- Force Adjustment: While not directly part of the control panel, the opener’s force settings ensure the door doesn’t exert too much force when opening or closing. Test this by placing a piece of cardboard in the door’s path; the door should reverse upon hitting it. Consult your manual for instructions on how to check and adjust force settings.
Software Updates (for Smart Panels)
If you have a smart control panel with MyQ® technology, ensure it remains connected to your Wi-Fi network. Firmware updates are sometimes released by LiftMaster to improve performance, add features, or patch security vulnerabilities. These updates usually occur automatically when the device is connected to the internet, but it’s good practice to ensure your MyQ® app is also kept up-to-date.
Comparing Liftmaster Control Panel Types
LiftMaster offers a range of control panels catering to different needs and budgets. Understanding the distinctions can help you choose the right one for your home or troubleshoot based on your existing model.
Basic Push-button Controls
These are the simplest form, often found in older installations or as a secondary control.
- Functionality: Single button to open, close, and stop the door.
- Installation: Wired directly to the motor unit.
- Pros: Inexpensive, simple to operate, reliable.
- Cons: Limited features, no diagnostic capabilities, no advanced security.
Multi-function Control Panels
These offer enhanced features over basic buttons.
- Functionality: May include illuminated buttons, lock mode, diagnostics, and sometimes control for integrated lighting.
- Installation: Typically wired.
- Pros: More convenient, better diagnostics, enhanced security features (lock mode).
- Cons: More expensive than basic buttons, still requires wiring.
Smart Control Panels With Myq®
These are the most advanced options, integrating with smartphone apps and smart home ecosystems.
- Functionality: Remote monitoring and control, alerts, integration with other smart devices.
- Installation: Wired connection to the motor unit, plus Wi-Fi setup.
- Pros: Maximum convenience and control, enhanced security through remote monitoring, potential for home automation.
- Cons: Most expensive option, requires a stable Wi-Fi connection, potential for network-related issues.
Here’s a simplified comparison:
| Feature | Basic Push-Button | Multi-Function Panel | Smart Control Panel (MyQ®) |
|---|---|---|---|
| **Primary Function** | Open/Close/Stop | Open/Close/Stop, Lock | Open/Close/Stop, Lock, Remote Control |
| **Remote Access** | No | No | Yes (via smartphone app) |
| **Diagnostics** | Minimal | Basic LEDs | Advanced app diagnostics |
| **Smart Home Ready** | No | No | Yes |
| **Installation** | Wired | Wired | Wired + Wi-Fi |
| **Cost** | Low | Medium | High |
Installation Considerations For New Control Panels
If you’re replacing an old control panel or installing a new one, proper installation is crucial for optimal performance and safety.
- Compatibility Check: Ensure the new control panel is compatible with your existing LiftMaster garage door opener motor unit. Check the model number of your opener and consult LiftMaster’s compatibility charts or your owner’s manual. Older openers might use Security+ 315 MHz or 390 MHz frequencies, while newer ones use Security+ 2.0® (multiple frequencies). The control panel must match the opener’s frequency and security protocol.
- Mounting Location: Choose a convenient and accessible location inside the garage, typically near the main entry door. The panel should be mounted at a height that is easily reachable by all household members, including children (though keeping it out of reach of very young children is advisable for safety). Ensure the location is within the range of the opener’s antenna if it’s a wireless control, or within reach of the necessary wiring if it’s a wired model.
- Wiring (for Wired Panels):
- Use the correct gauge wire (typically 2-conductor, 22-gauge thermostat wire).
- Run the wire neatly along walls or ceilings, securing it with staples or clips. Avoid sharp bends or kinks.
- Ensure the wire does not interfere with the garage door’s movement or the
